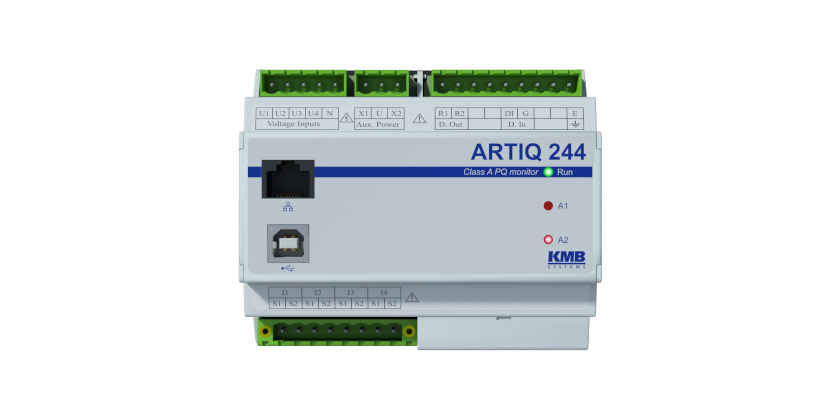

ARTIQ 244

ARTIQ 244 is a class A power quality analyzer according to IEC 61000-4-30 ed3 and energy counter class 0.2S. It is constructed as a robust solution for harsh and challenging environments of a typical HV/EHV applications. All measured data are stored to large internal memory (512MB) for future processing. Evaluation of power quality is according EN 50160 ed3. Extreme accuracy, high sampling rate, measurement of 4 voltages and 4 currents predetermines use in most demanding applications. It measures and records all common electrical parameters such as frequency, line and phase voltages, currents, loads, active and reactive powers, true and displacement power factors, unbalances and up to 128 harmonics as well as the total harmonic distortion. With optional SH firmware module ARTIQ 244 can also measure supra-harmonics in the range between 2 and 9 kHz.

It can optionally monitor power quality (with PQ-A module - inter-harmonics, flicker, voltage events), record transients (with GO module) and the ripple control signals (RCS module).

USB port provides quick, easy and reliable means for local configuration and data acquisition. Ethernet interface (with web server, Modbus TCP, SNTP, DNS, SNMP, DHCP, TLS...) allows it to be remotely managed via the ENVIS application or to provide data to other systems. Firmware module is also available with support for IEC-104 substation automation protocol. In combination with ENVIS.Online service, esg tools or embedded library (.NET core, C/C++ for Windows/Linux) its actual and recorded values can be also periodically downloaded and stored to a file or remote SQL database for further processing and analysis
